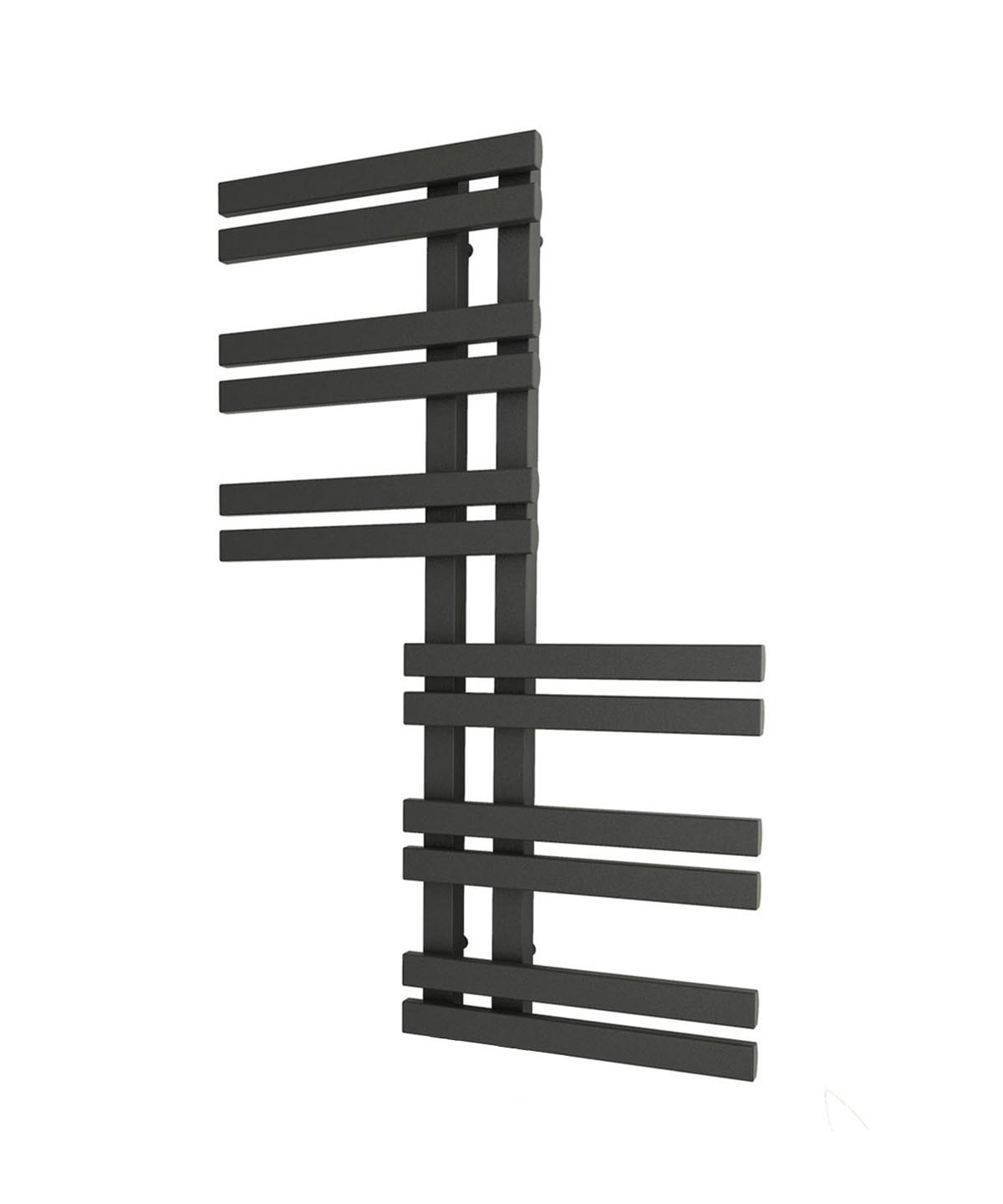

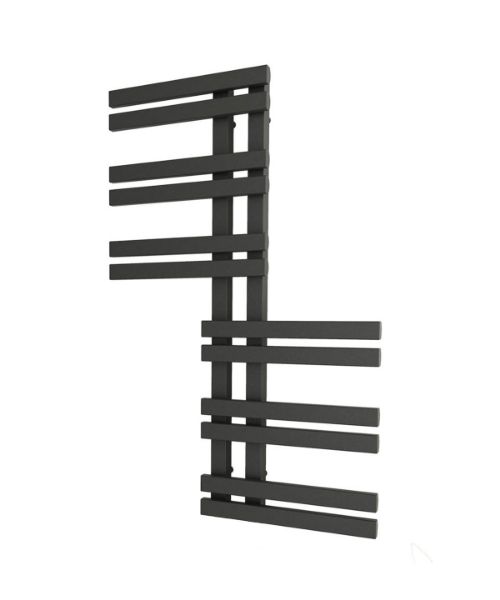

ZHIA Designer Anthracite Towel Radiator 600mm Wide 1000mm High

Name: ZHIA Designer Anthracite Towel Radiator 600mm Wide 1000mm High
Brand: ADIGE Radiators
SKU: 0634041766757
Price: 160.00 GBP
Availability: InStock
Rating: 4.2 (5 reviews)

5 review(s) | Add your review

600mm wide and 1000mm high designer anthracite towel radiator with 377 Watt - 1285 BTU/h @ Delta 50.

Price: £160.00 inc. VAT

Old price: £219.99 inc. VAT

Brand: ADIGE Radiators

Product Code: ZHA6010A

Availability:

18 in stock

Qty:

+ -

Product tags

With the intelligent shape of this, you can utilise a large wall and make use of it both length and height-wise. This uses a lot of extra sections to jut out from the main section, giving you space both left and right-hand side to fill it up with as many towels as you need.

Each section comes with two thick bars, allowing you to easily lay down everything that you need without any issue. It’s the ideal choice for those who enjoy having a larger solution, covering both height (1000mm) and width (600mm) whilst still retaining a creative charm.

Width: 600mm
Height: 1000mm
Pipe Centres: 80mm
Wall to Pipe Centres: 68-83mm
Total Projection: 96-111mm

Heat Output: 377 Watt - 1285BTU/h @ Delta 50
Water Intake:4.44 litres
Pressure: 8 Bar (Safety Tested) / 3 Bar (Working Pressure)
Finish: Anthracite
Material: Mild Steel
Design: Square-Tubed Z shaped designer anthracite bathroom radiator
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 12 (35mm x 20mm)
Vertical Tubes: 2 (35mm x 35mm)
Tube Layout: 2 + 2 + 2 Facing Left + 2 + 2 + 2 Facing Right
Number of Gaps: 5

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years

Please find below 3 possible ways to use this towel radiator together with pictures and drawings which will help you visualize the connections and help you decide what parts you require.

Start with selecting from options below depending on how you wish to use your towel rail. If you are looking for a central heating or dual fuel type usage, you will then need to select the location of your pipe work (wall or floor) to view relevant options and parts required for your selection.

Option 1 - I want to use this towel rail as Dual Fuel - What Parts do I need?

1.A) My pipes are coming out from the WALL - Dual Fuel

When your pipe work is coming out from the wall, there are 3 possible ways to achieve a dual fuel towel rail connection. 1st option below is the best solution in terms of ease of installation and the overall look once the connection is final. This is achieved by using a set of radiator valves specifically designed for dual fuel towel rails. These valves have T pipes built-in allowing elements to be inserted directly below, while the pipe work outlet is facing to back wall.

Usually on dual fuel towel rails, pipe work need to be arranged wider than the towel rail. However with these special valves, pipe work can be in line with the towel rail as if it is a straight forward central heating connection only.

1.A.1) Dual Fuel - Pipes from Wall # Corner Valves option (recommended)

click to enlarge

Type of Use:Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A set of dual fuel corner valves
(DFCC for chrome or DFAC for anthracite towel rails)
A matching heating element (thermostatic type recommended)

With this option you will not require any T pipes and whole connection will be a lot more symmetrical as pipe work and valves are aligned perfectly with towel rail's vertical tubes.

1.A.2) Dual Fuel - Pipes from Wall # Two T- Pipes option

click to enlarge

Type of Use:Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.A.3) Dual Fuel - Pipes from Wall # One T- Pipe option (not recommended)

click to enlarge

Type of Use:Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
One T pipe (Dual Fuel adaptor)

1.B) My pipes are coming out of the FLOOR - Dual Fuel

1.B.1) Dual Fuel - Pipes from Floor # Two T- Pipes option (recommended)

click to enlarge

Type of Use:Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.B.2) Dual Fuel - Pipes from Floor # One T- Pipe option (not recommended)

click to enlarge

Type of Use:Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

One straight and one angled valve
A matching heating element (thermostatic type recommended)
One T-pipe (Dual Fuel adaptor)

Option 2 - I want to use this towel rail as part of Central Heating - What Parts do I need?

2.A) My pipes are coming out from the WALL - Central Heating

click to enlarge

Type of Use:Central Heating connection only
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves or a pair of corner valves (recommended)

While angled valve handles will protrude, corner valves will be in-line with your towel rail.

2.B) My pipes are coming out from the FLOOR - Central Heating

click to enlarge

Type of Use:Central Heating connection only
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of straight (in-line) valves

Option 3 - I want to use this towel rail as Electric Only - What Parts do I need?

click to enlarge

Type of Use:Electric Only
Parts Required:

Matching heating (electric) element
Blanking plug

Once you have these parts, your installer would need to put them together and fill the towel rail manually with distilled (deionized) water and inhibitor mix.
