Width: 500mm
Height: 1600mm
Pipe Centres: 465mm
Wall to Pipe Centres: 85mm
Total Projection: 115mm
Heat Output: 438 Watts - 1494 BTU/h @ Delta 50
Finish: Polished
Material: 304 Grade Stainless Steel

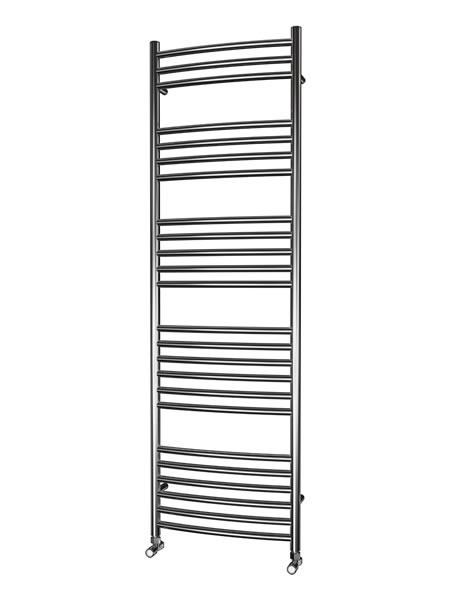

Design: Curved Ladder Type Radiator
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)
Orientation: Vertical
Horizontal Tubes: 24 (22mm Diameter)
Vertical Tubes: 2
Tube Layout: 3 + 4 + 5 + 6 + 6
Number of Gaps: 4
Mountings: Fixing brackets, plugs, screws and airvent
Guarantee: 25 Years
