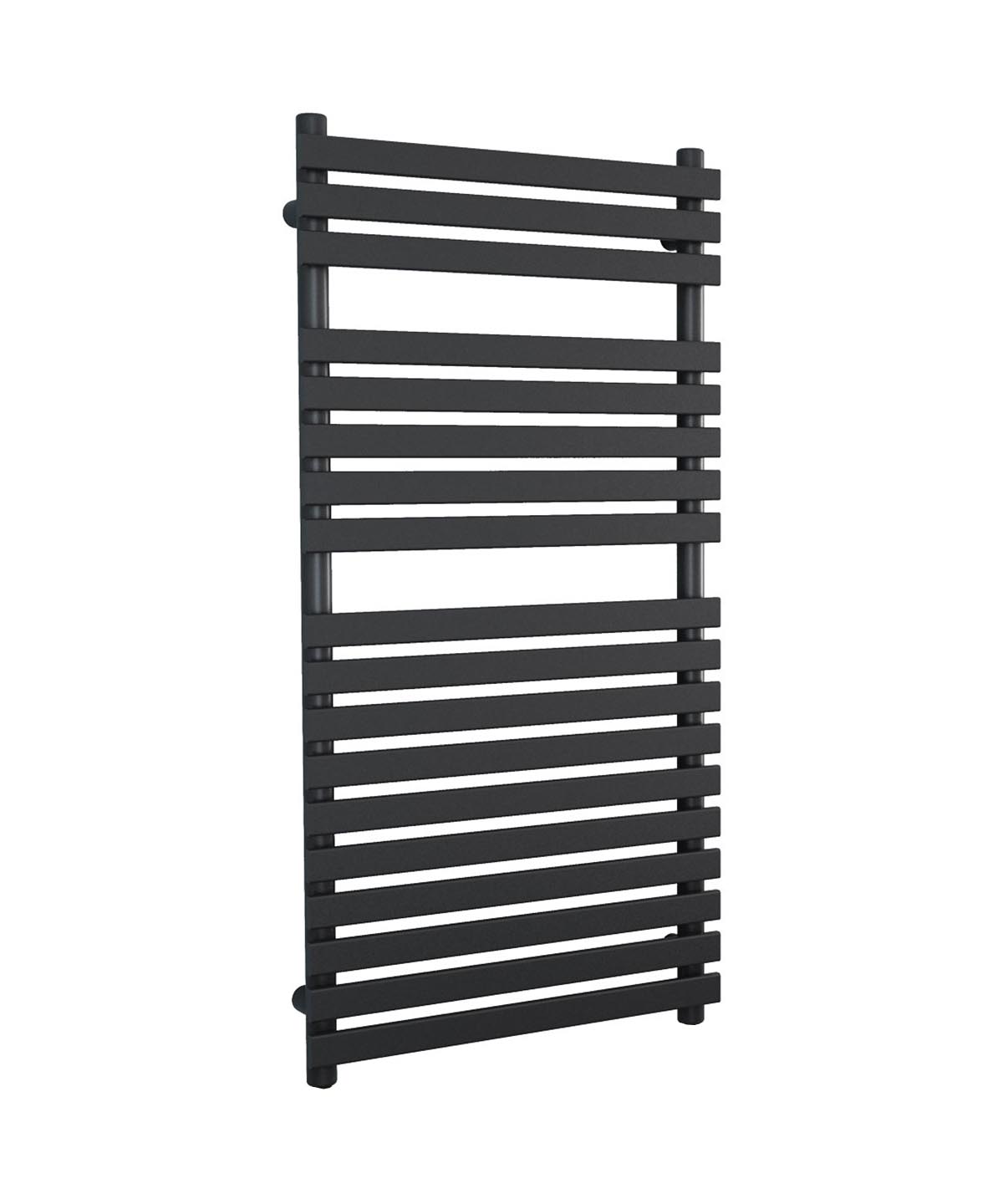

SONAVA Designer Anthracite Towel Radiator - 600mm Wide 1200mm High

600mm wide and 1200mm high rectangular horizontal tubed on round vertical tubes designer anthracite towel radiator with 746 Watt - 2544 BTU/h @ Delta 50.
£200.00 inc. VAT
£249.99 inc. VAT
Brand: ADIGE
Product Code: SNV6012A
EAN: 0634041766962
11 in stock
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Designed with a unique and contrasting style, our 1200mm high rectangular tube anthracite designer towel radiator is a must-have. This is part of our SONAVA range, and should be a must-use for anyone looking to inject some modern and fresh look into their bathrooms.

If you are looking for something a bit more creative than the norm, then you should absolutely take a look at this designer anthracite towel radiator selection. It’s a modern, reliable choice that can look excellent and really add a touch of invention where previously none existed. The smart dark grey design can look good on both dark and light walls too.

Width: 600mm
Height: 1200mm
Pipe Centres: 550mm
Wall to Pipe Centres: 65-75mm
Total Projection: 100-110mm

Heat Output: 746 Watt - 2544 BTU/h @ Delta 50
Water Intake: 6.93 litres
Pressure: 6 Bar (Safety Tested)
Finish: Anthracite
Material: Mild Steel
Design: Rectangular Horizontal Tubes on Round Vertical Tubes
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 18 (Rectangular 43mm x 14mm Diameter)
Vertical Tubes: 2 (Round 42mm Diameter)
Tube Layout: 10 + 5 + 3
Number of Gaps: 2

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years

Please find below 3 possible ways to use this towel radiator together with pictures and drawings which will help you visualize the connections and help you decide what parts you require.

Start with selecting from options below depending on how you wish to use your towel rail. If you are looking for a central heating or dual fuel type usage, you will then need to select the location of your pipe work (wall or floor) to view relevant options and parts required for your selection.



Dual Fuel Heated Towel Rails Option 1 - I want to use this towel rail as Dual Fuel - What Parts do I need?

1.A) My pipes are coming out from the WALL - Dual Fuel

When your pipe work is coming out from the wall, there are 3 possible ways to achieve a dual fuel towel rail connection. 1st option below is the best solution in terms of ease of installation and the overall look once the connection is final. This is achieved by using a set of radiator valves specifically designed for dual fuel towel rails. These valves have T pipes built-in allowing elements to be inserted directly below, while the pipe work outlet is facing to back wall.

Usually on dual fuel towel rails, pipe work need to be arranged wider than the towel rail. However with these special valves, pipe work can be in line with the towel rail as if it is a straight forward central heating connection only.

1.A.1) Dual Fuel - Pipes from Wall # Corner Valves option (recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A set of dual fuel corner valves
    (DFCC for chrome or DFAC for anthracite towel rails)
  • A matching heating element (thermostatic type recommended)

With this option you will not require any T pipes and whole connection will be a lot more symmetrical as pipe work and valves are aligned perfectly with towel rail's vertical tubes.

1.A.2) Dual Fuel - Pipes from Wall # Two T- Pipes option

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves
  • A matching heating element (thermostatic type recommended)
  • Two T pipes (Dual Fuel adaptor)
  • One blanking plug

1.A.3) Dual Fuel - Pipes from Wall # One T- Pipe option (not recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves
  • A matching heating element (thermostatic type recommended)
  • One T pipe (Dual Fuel adaptor)

1.B) My pipes are coming out of the FLOOR - Dual Fuel

1.B.1) Dual Fuel - Pipes from Floor # Two T- Pipes option (recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:
  • A pair of angled valves
  • A matching heating element (thermostatic type recommended)
  • Two T pipes (Dual Fuel adaptor)
  • One blanking plug

1.B.2) Dual Fuel - Pipes from Floor # One T- Pipe option (not recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:
  • One straight and one angled valve
  • A matching heating element (thermostatic type recommended)
  • One T-pipe (Dual Fuel adaptor)

Central Heating Connections Option 2 - I want to use this towel rail as part of Central Heating - What Parts do I need?

2.A) My pipes are coming out from the WALL - Central Heating

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves or a pair of corner valves (recommended)
While angled valve handles will protrude, corner valves will be in-line with your towel rail.

2.B) My pipes are coming out from the FLOOR - Central Heating

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out from the floor
Parts Required:
  • A pair of straight (in-line) valves

Electric Only Use Option 3 - I want to use this towel rail as Electric Only - What Parts do I need?

Type of Use: Electric Only
Parts Required:
  • Matching heating (electric) element
  • Blanking plug

Once you have these parts, your installer would need to put them together and fill the towel rail manually with distilled (deionized) water and inhibitor mix.



*
*
*
*

Designed with a unique and contrasting style, our 1200mm high rectangular tube anthracite designer towel radiator is a must-have. This is part of our SONAVA range, and should be a must-use for anyone looking to inject some modern and fresh look into their bathrooms.

If you are looking for something a bit more creative than the norm, then you should absolutely take a look at this designer anthracite towel radiator selection. It’s a modern, reliable choice that can look excellent and really add a touch of invention where previously none existed. The smart dark grey design can look good on both dark and light walls too.

Width: 600mm
Height: 1200mm
Pipe Centres: 550mm
Wall to Pipe Centres: 65-75mm
Total Projection: 100-110mm

Heat Output: 746 Watt - 2544 BTU/h @ Delta 50
Water Intake: 6.93 litres
Pressure: 6 Bar (Safety Tested)
Finish: Anthracite
Material: Mild Steel
Design: Rectangular Horizontal Tubes on Round Vertical Tubes
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 18 (Rectangular 43mm x 14mm Diameter)
Vertical Tubes: 2 (Round 42mm Diameter)
Tube Layout: 10 + 5 + 3
Number of Gaps: 2

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
