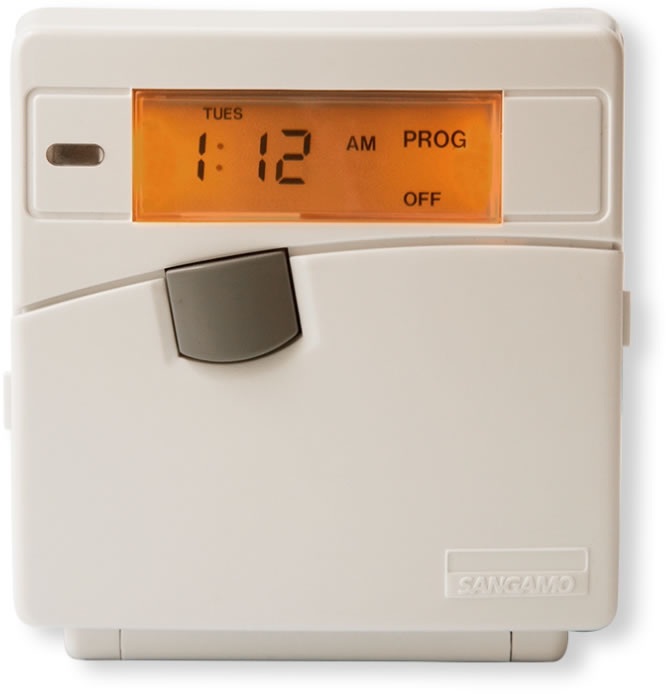

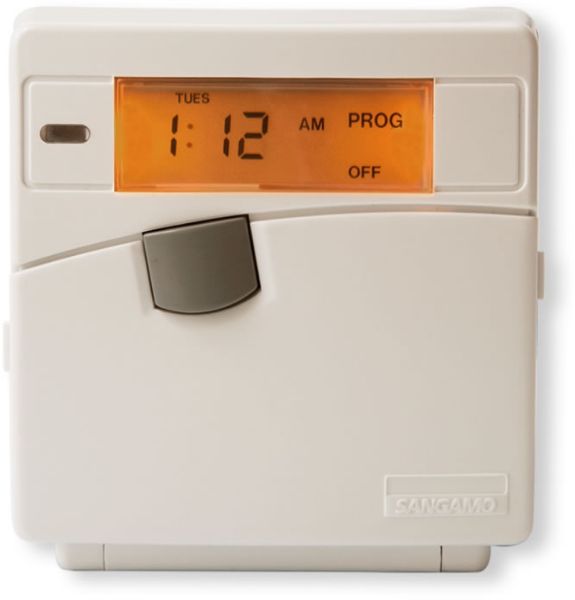

Powersaver Select - PSS Electronic Timer Controller

Product Code: PSS
EAN: 5026961007471
Brand: ADIGE
Availability: 3 in stock
£61.19 inc. VAT
+ -

Sangamo Powersaver Select (PSS) is a 7 day electronic timer controller which can be used with our heating elements and electric towel rails. PSS fits directly into a single gang surface box.

The 16A switch allows up to 3 operations per day:

  1. 24 Hour - 3 operations repeated each day (default)
  2. 5/2 Day - 3 operations repeating Mon-Fri & a separate 3 operations repeating Sat-Sun
  3. 7 Day - 3 operations individually programmed for each day of the week

The large multi-press button controls the boost operation (30 mins, 1 or 2 hours power outside programmed times). These 3 different boost functions, you can turn the device ON for 30mins, 1 hour or 2 hours allowing you to switch on your heating element or electric towel rail outside programmed times.



Technical Specifications

Contact Rating: 16A Resistive 240V a.c.
Supply: 230V 50/60 Hz a.c.
Fixing Single Patress: Surface and Flush Mounting
Resolution of Programs: 10 Minutes
Power Consumption: 10VA Maximum
Live Parts Protection: This unit is totally protected by the enclosure
Dirt and Moisture Protection: IP00
Shock Protection: Class 1 (this unit must be connected to earth)
Case Material: Polycarbonate
Type of Action: Type 1B
Temperature Rating: T35
Operation Temperature: 0°C to 35°C
Memory Reserve: 4 Hours - when on power for previous 12 hours
Display: LCD
Program Settings: Max.3 On/Off Operations (Mon-Fri), Max. 3 On/Off Operations (Sat-Sun)
Boost Settings: User selectable - 1/2, 1 or 2 hours
Control Pollution Category: Normal



Wiring

L/Out – Live Out (Load)
L – Live In (Clock & Load)
N/Out – Neutral Out
N – Neutral In

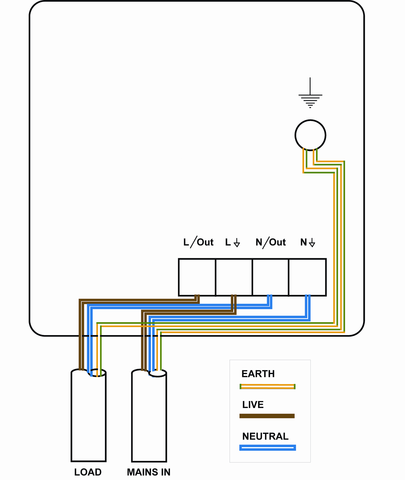

PSS Wiring Diagram





Sangamo Powersaver Select (PSS) is a 7 day electronic timer controller which can be used with our heating elements and electric towel rails. PSS fits directly into a single gang surface box.

The 16A switch allows up to 3 operations per day:

  1. 24 Hour - 3 operations repeated each day (default)
  2. 5/2 Day - 3 operations repeating Mon-Fri & a separate 3 operations repeating Sat-Sun
  3. 7 Day - 3 operations individually programmed for each day of the week

The large multi-press button controls the boost operation (30 mins, 1 or 2 hours power outside programmed times). These 3 different boost functions, you can turn the device ON for 30mins, 1 hour or 2 hours allowing you to switch on your heating element or electric towel rail outside programmed times.



Technical Specifications

Contact Rating: 16A Resistive 240V a.c.
Supply: 230V 50/60 Hz a.c.
Fixing Single Patress: Surface and Flush Mounting
Resolution of Programs: 10 Minutes
Power Consumption: 10VA Maximum
Live Parts Protection: This unit is totally protected by the enclosure
Dirt and Moisture Protection: IP00
Shock Protection: Class 1 (this unit must be connected to earth)
Case Material: Polycarbonate
Type of Action: Type 1B
Temperature Rating: T35
Operation Temperature: 0°C to 35°C
Memory Reserve: 4 Hours - when on power for previous 12 hours
Display: LCD
Program Settings: Max.3 On/Off Operations (Mon-Fri), Max. 3 On/Off Operations (Sat-Sun)
Boost Settings: User selectable - 1/2, 1 or 2 hours
Control Pollution Category: Normal



Wiring

L/Out – Live Out (Load)
L – Live In (Clock & Load)
N/Out – Neutral Out
N – Neutral In



PSS Wiring Diagram
