Width: 600mm
Height: 1512mm
Pipe Centres: 555mm
Wall to Pipe Centres: 65-80mm
Total Projection: 95-110mm
Heat Output: 587 Watt - 2003 BTU/h @ Delta 50
Water Intake:8 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Curved
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)
Orientation: Vertical
Horizontal Tubes: 30 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)

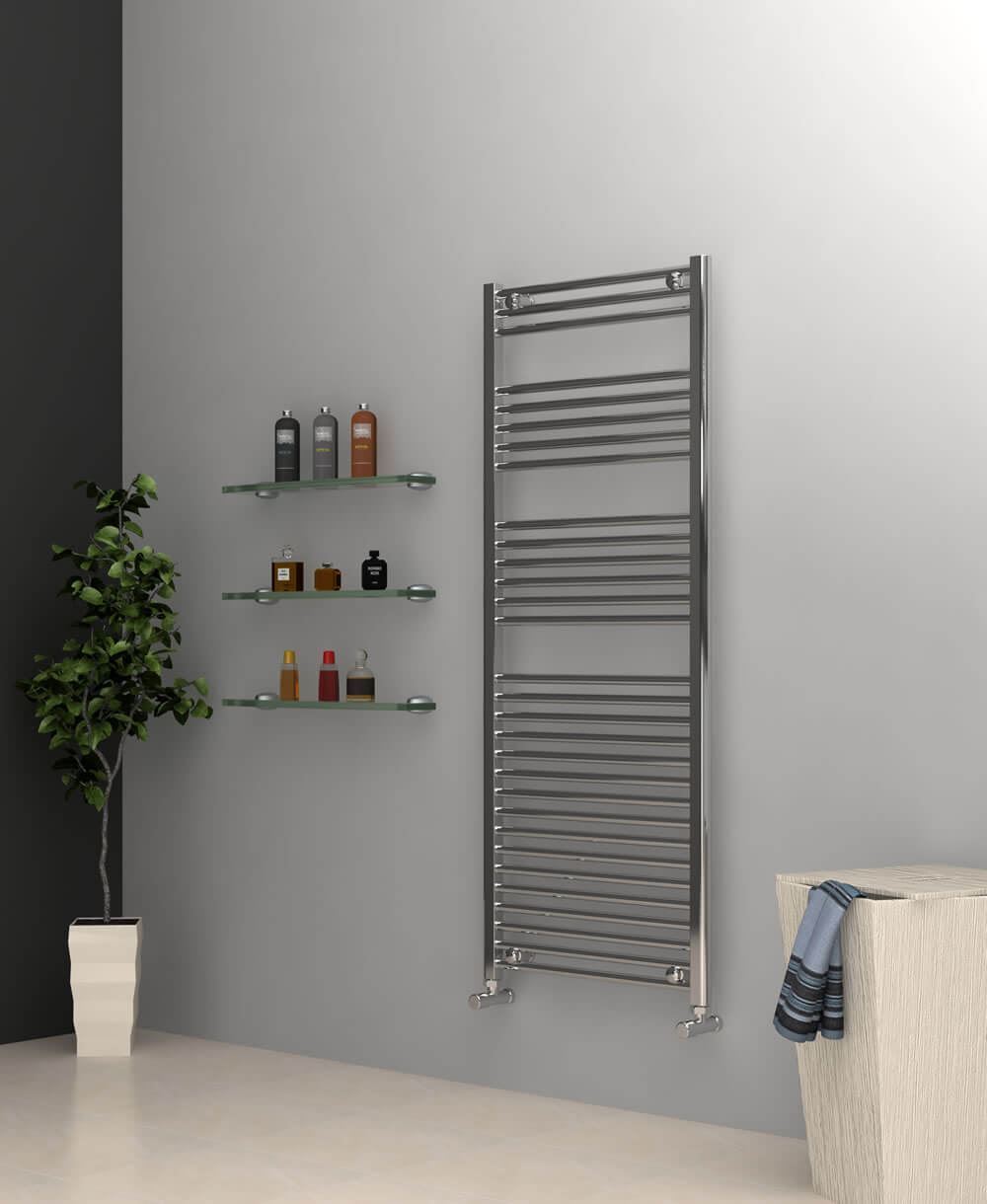

Tube Layout: 16 + 10 + 6 (Layout in Image 1 is different)
Number of Gaps: 2
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
