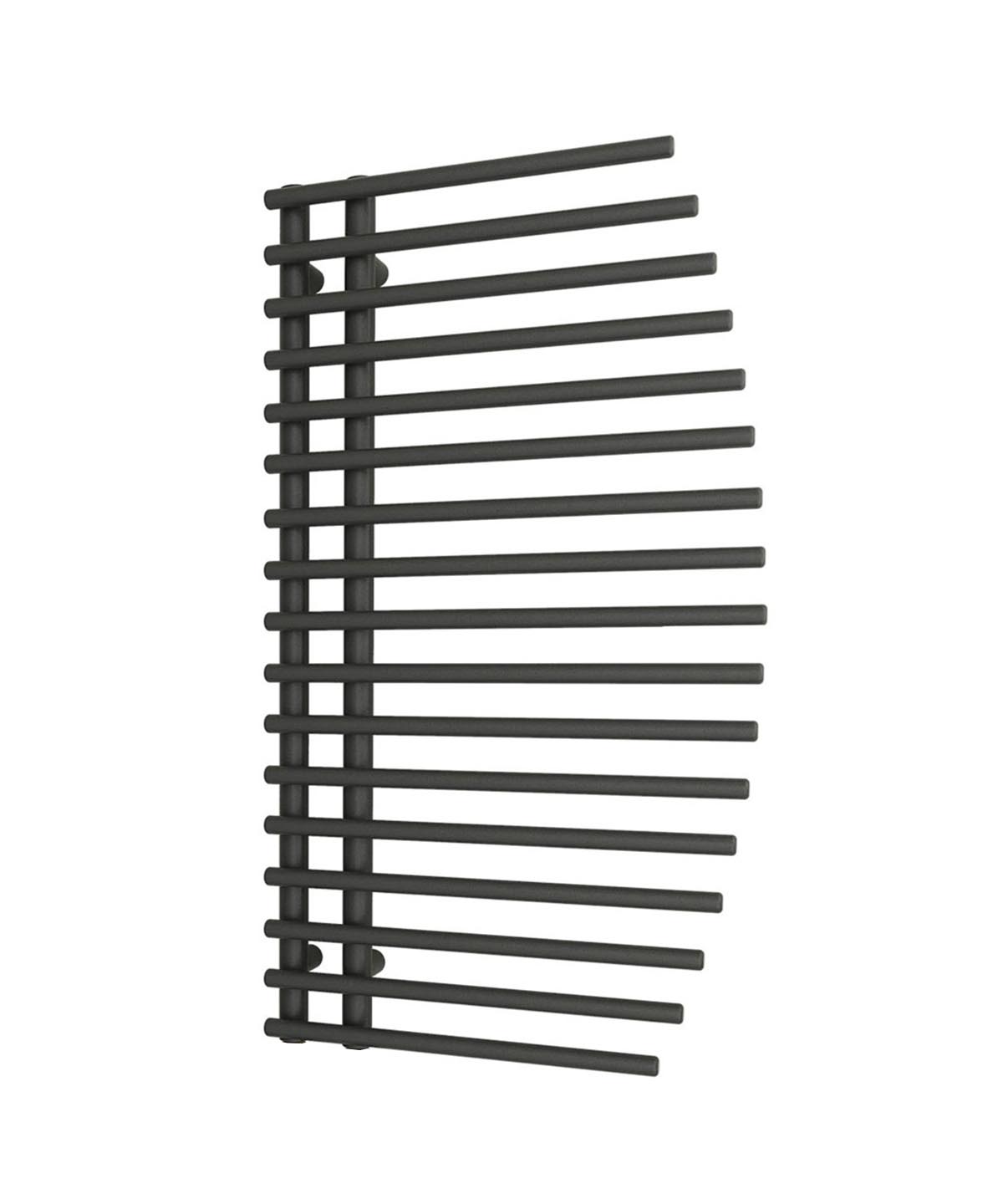

BESLANO Anthracite Towel Radiator - 550mm Wide 1000mm High

550mm wide and 1000mm high anthracite designer towel radiator with 424 Watt - 1446 BTU/h @ Delta 50.

£179.99 inc. VAT

Brand: ADIGE

Product Code: BSL5510A

EAN: 0634041766733

Availability:

10 in stock

Qty:

+ -

Details & Description
Parts Required
Enquiry

Our BESLANO mild steel tube-on-tube heated towel radiator is a fantastic solution for those who need reliable, effective radiators. These are designed to give you a simple, effective solution for using with central heating, whether you go for electric only or otherwise.

This is the ideal pick-up for anyone who needs a simple, easy to use anthracite towel radiator that offers ample space for storage. It’s capable of producing a heat output of 424W, and can use a water intake of 4.29l. It’s the perfect choice when you need a heating solution that you know will do the job that you require.

Width: 550mm
Height: 1000mm
Pipe Centres: 80mm
Wall to Pipe Centres: 62-72mm
Total Projection: 102-112mm

Heat Output: 424 Watt - 1446 BTU/h @ Delta 50
Water Intake: 4.29 litres
Pressure: 8 Bar (Safety Tested) 3 Bar Working
Finish: Anthracite
Material: Mild Steel
Design: Tube on tube Heated Towel Radiator
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 17
Vertical Tubes: 2
Tube Layout: 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1
Number of Gaps: 16

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years

Please find below 3 possible ways to use this towel radiator together with pictures and drawings which will help you visualize the connections and help you decide what parts you require.

Start with selecting from options below depending on how you wish to use your towel rail. If you are looking for a central heating or dual fuel type usage, you will then need to select the location of your pipe work (wall or floor) to view relevant options and parts required for your selection.

Dual Fuel Heated Towel Rails Option 1 - I want to use this towel rail as Dual Fuel - What Parts do I need?

1.A) My pipes are coming out from the WALL - Dual Fuel

When your pipe work is coming out from the wall, there are 3 possible ways to achieve a dual fuel towel rail connection. 1st option below is the best solution in terms of ease of installation and the overall look once the connection is final. This is achieved by using a set of radiator valves specifically designed for dual fuel towel rails. These valves have T pipes built-in allowing elements to be inserted directly below, while the pipe work outlet is facing to back wall.

Usually on dual fuel towel rails, pipe work need to be arranged wider than the towel rail. However with these special valves, pipe work can be in line with the towel rail as if it is a straight forward central heating connection only.

1.A.1) Dual Fuel - Pipes from Wall # Corner Valves option (recommended)

click to enlarge

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A set of dual fuel corner valves
(DFCC for chrome or DFAC for anthracite towel rails)
A matching heating element (thermostatic type recommended)

With this option you will not require any T pipes and whole connection will be a lot more symmetrical as pipe work and valves are aligned perfectly with towel rail's vertical tubes.

1.A.2) Dual Fuel - Pipes from Wall # Two T- Pipes option

click to enlarge

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.A.3) Dual Fuel - Pipes from Wall # One T- Pipe option (not recommended)

click to enlarge

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
One T pipe (Dual Fuel adaptor)

1.B) My pipes are coming out of the FLOOR - Dual Fuel

1.B.1) Dual Fuel - Pipes from Floor # Two T- Pipes option (recommended)

click to enlarge

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of angled valves
A matching heating element (thermostatic type recommended)
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.B.2) Dual Fuel - Pipes from Floor # One T- Pipe option (not recommended)

click to enlarge

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

One straight and one angled valve
A matching heating element (thermostatic type recommended)
One T-pipe (Dual Fuel adaptor)

Central Heating Connections Option 2 - I want to use this towel rail as part of Central Heating - What Parts do I need?

2.A) My pipes are coming out from the WALL - Central Heating

click to enlarge

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves or a pair of corner valves (recommended)

While angled valve handles will protrude, corner valves will be in-line with your towel rail.

2.B) My pipes are coming out from the FLOOR - Central Heating

click to enlarge

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of straight (in-line) valves

Electric Only Use Option 3 - I want to use this towel rail as Electric Only - What Parts do I need?

click to enlarge

Type of Use: Electric Only
Parts Required:

Matching heating (electric) element
Blanking plug

Once you have these parts, your installer would need to put them together and fill the towel rail manually with distilled (deionized) water and inhibitor mix.
