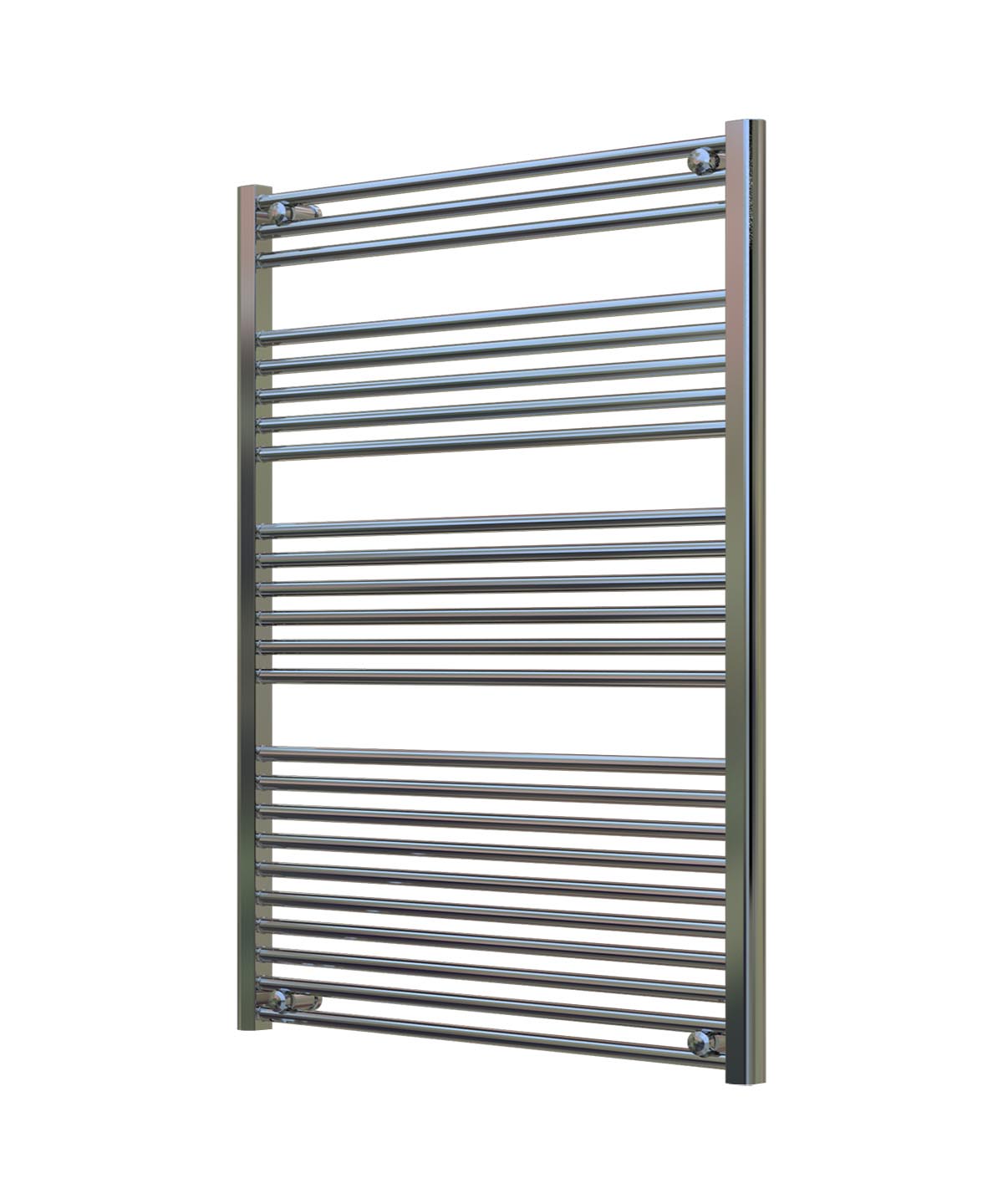

Width: 800mm
Height: 1200mm
Pipe Centres: 750mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm
Heat Output: 607 Watt - 2073 BTU/h @ Delta 50
Water Intake: 7.64 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)
Orientation: Vertical
Horizontal Tubes: 23 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 10 + 5 + 5 + 3
Number of Gaps: 3
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
