Sorry - this product is no longer available - Discontinued

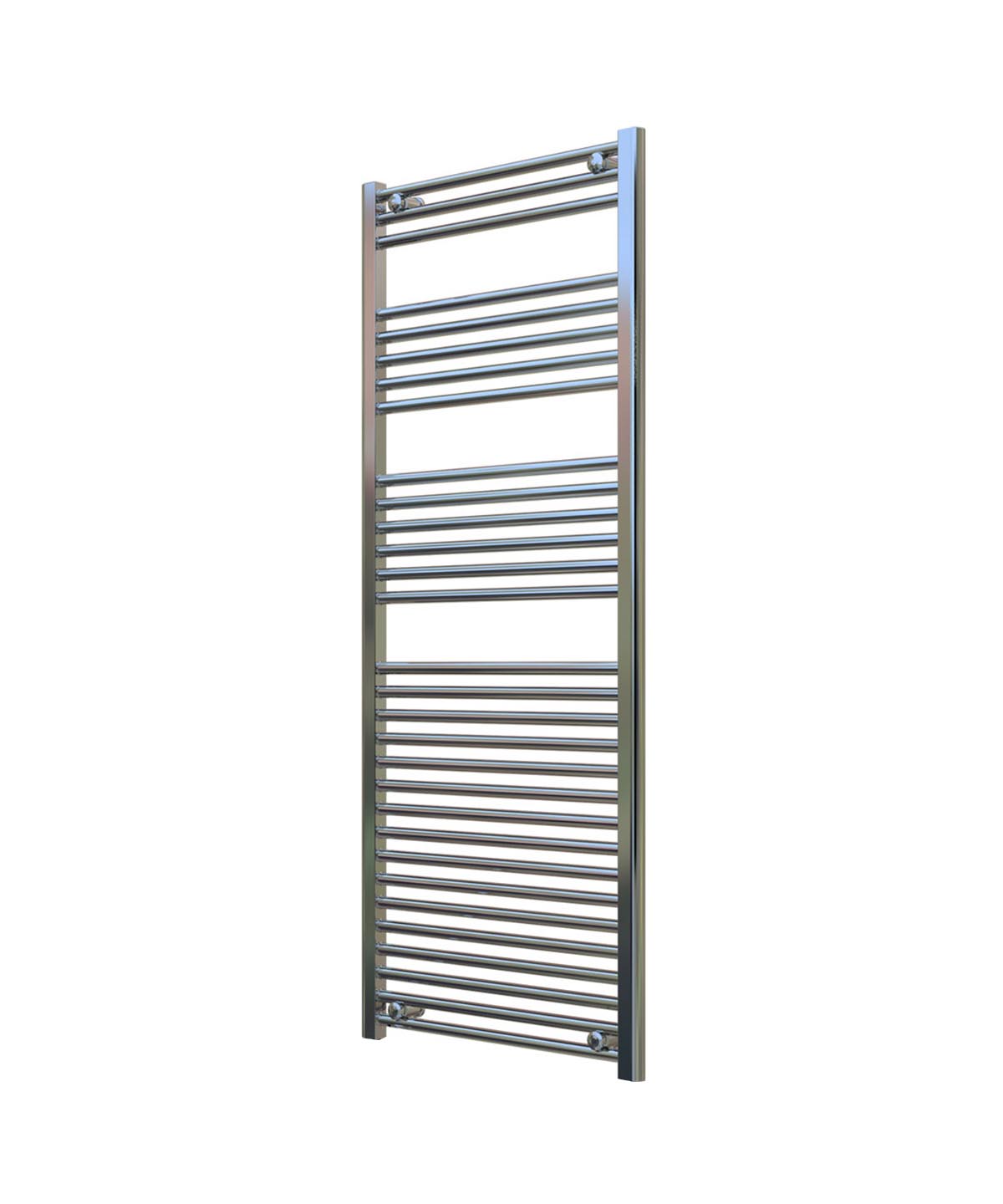

Ladder Chrome Towel Radiator 600mm Wide | 1500mm High

600mm(W) × 1500mm(H) | This steel ladder towel radiator features a chrome-plated finish for lasting durability, delivering 591W heat output (2015 BTU/h @ Delta 50). Its generous proportions provide exceptional drying space while maintaining a sleek profile, ideal for contemporary bathrooms requiring both functionality and refined style.
£149.99 inc. VAT
Product Code: ADG6015C
Out of stock
+ -
To view 'Compatible Parts' for this product, please select your usage below

Central Heating Only Option: With Straight Valves - Pipes from FLOOR - (£174.98)

Central Heating Only Option: With Angled Valves - Pipes from WALL - (£174.98)

Central Heating Only Option: With Corner Valves - Pipes from WALL - (£174.98)

Electric Only Option: With 400Watt Standard Element - (£195.97)

Electric Only Option: With 600Watt Thermostatic Element - (£255.97)

Dual Fuel Option: With 400Watt Standard Element & Pipes From FLOOR - (£236.95)

Dual Fuel Option: With 600Watt Thermostatic Element & Pipes From FLOOR - (£296.95)

Dual Fuel Option: With 400Watt Standard Element & Pipes From WALL - (£229.97)

Dual Fuel Option: With 600Watt Thermostatic Element & Pipes From WALL - (£289.97)

Width: 600mm
Height: 1500mm
Pipe Centres: 550mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm

Heat Output: 591 Watt - 2015 BTU/h @ Delta 50
Water Intake: 7.66 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 30 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 16 + 6 + 5 + 3
Number of Gaps: 3

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years

Please find below 3 possible ways to use this towel radiator together with pictures and drawings which will help you visualize the connections and help you decide what parts you require.

Start with selecting from options below depending on how you wish to use your towel rail. If you are looking for a central heating or dual fuel type usage, you will then need to select the location of your pipe work (wall or floor) to view relevant options and parts required for your selection.

When your pipe work is coming out from the wall, there are 3 possible ways to achieve a dual fuel towel rail connection. 1st option below is the best solution in terms of ease of installation and the overall look once the connection is final. This is achieved by using a set of radiator valves specifically designed for dual fuel towel rails. These valves have T pipes built-in allowing elements to be inserted directly below, while the pipe work outlet is facing to back wall.

Usually on dual fuel towel rails, pipe work need to be arranged wider than the towel rail. However with these special valves, pipe work can be in line with the towel rail as if it is a straight forward central heating connection only.

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A set of dual fuel corner valves (DFCC)
  • Matching heating element

With this option you will not require any T pipes and whole connection will be a lot more symmetrical as pipe work and valves are aligned perfectly with towel rail's vertical tubes.

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves
  • Matching heating element
  • Two T pipes (Dual Fuel adaptor)
  • One blanking plug
Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves
  • Matching heating element
  • One T pipe (Dual Fuel adaptor)
Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:
  • A pair of angled valves
  • Matching heating element
  • Two T pipes (Dual Fuel adaptor)
  • One blanking plug
Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:
  • One straight and one angled valve
  • Matching heating element
  • One T-pipe (Dual Fuel adaptor)
Type of Use: Central Heating connection only
Pipe Work: Pipes coming out of the wall
Parts Required:
  • A pair of angled valves or a pair of corner valves (recommended)

While angled valve handles will protrude, corner valves will be in-line with your towel rail.

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out from the floor
Parts Required:
  • A pair of straight (in-line) valves
Type of Use: Electric Only
Parts Required:
  • Matching heating (electric) element
  • Blanking plug

Please note that product codes beginning with EL, ELS and ELT are either dry type electric towel rails or pre-filled towel radiators supplied with a matching heating element and a blanking plug.

For those products (product codes begin with EL, ELS, ELT) you do not need to purchase any additional parts.

Towel rail technical drawing 600/1500mm flat models

*
*
*
*
