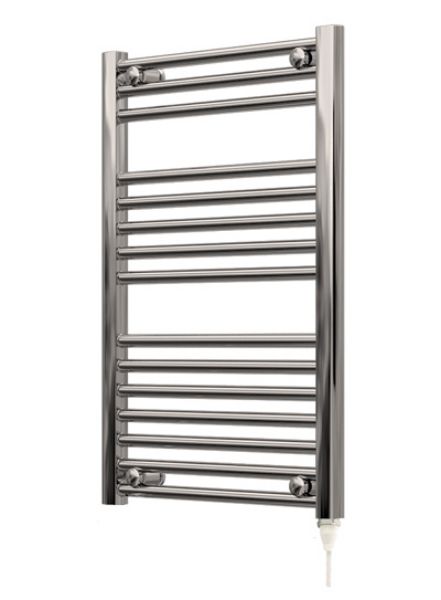

Pre-Filled Electric Towel Rail Standard - 500mm x 750mm Chrome

Name: Pre-Filled Electric Towel Rail Standard - 500mm x 750mm Chrome
Brand: ADIGE Radiators
SKU: ELS-PF5075C
Price: 149.99 GBP
Availability: InStock
Rating: 5.0 (2 reviews)

2 review(s) | Add your review

The ELS-PF5075C is a compact, pre-filled electric towel rail designed for cloakrooms, smaller bathrooms, or en-suites without central heating. Supplied as a complete installation kit, it includes a 200W standard electric heating element, mounting brackets, and pre-filled inhibited fluid. With a heat output of 253W / 864 BTU/h (ΔT50°C), it provides gentle, efficient warmth and features 15 horizontal tubes in a space-saving 500mm x 750mm vertical design. The installation process is straightforward: mount the radiator, fit the supplied element, and wire it to a fused spur. Constructed from durable steel with a chrome-plated finish and safety tested to 8 Bar, it is backed by a 5-year guarantee on the rail and a 1-year warranty on the element.

£149.99 inc. VAT

Brand: ADIGE Radiators

Product Code: ELS-PF5075C

Availability:

27 in stock

Qty:

+ -

Details & Description
Technical Drawing
Enquiry
Product Reviews

For those properties without central heating, here we have a pre-filled electric towel rail which comes complete with a 200 watt standard type electric heating element, blanking plugs and it is pre-filled with deionised water based solution containing a mix of central heating preservatives and inhibitors. No other parts required to install and run this towel rail as electric only. Simply remove one of the blanking plugs from the bottom of the towel radiator (Opposite side of the bleed valve. - if the bleed valve is on top-right, remove blanking plug from bottom-left), insert and secure the electric heating element supplied to this inlet point and affix the radiator using the brackets supplied on to your wall, connect heating element to your fused spur power outlet.

Width: 500mm
Height: 750mm
Total Projection: 90-110mm

Radiator Heat Output: 253 Watt - 864 BTU/h @ Delta 50
Element Type & Power: 200 Watt Standard Electric Element
Water Intake: 3.36 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Electric only

Orientation: Vertical
Horizontal Tubes: 15 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 7 + 5 + 3
Number of Gaps: 2

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years on towel rail & 1 year on electric element which is replaceable and changeable.

This is an electrical item and should be installed by a qualified electrician. Use with caution as the towel rail surface may get hot for delicate skin.

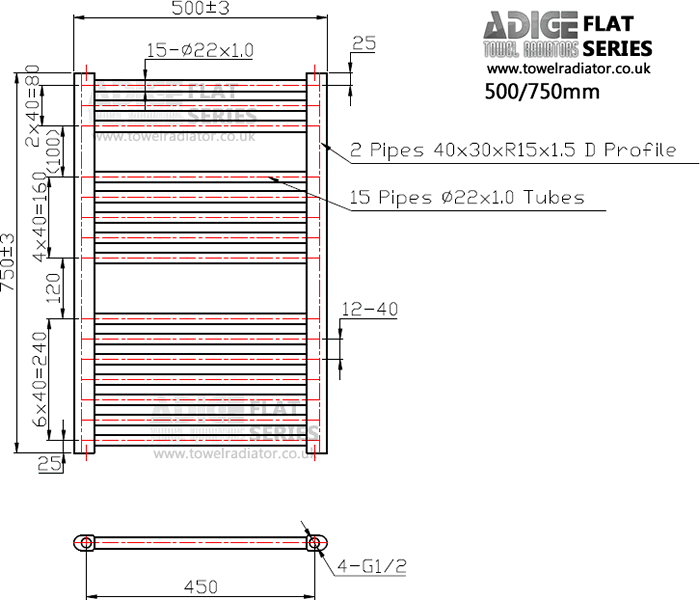

Towel rail technical drawing 500/750mm flat models
