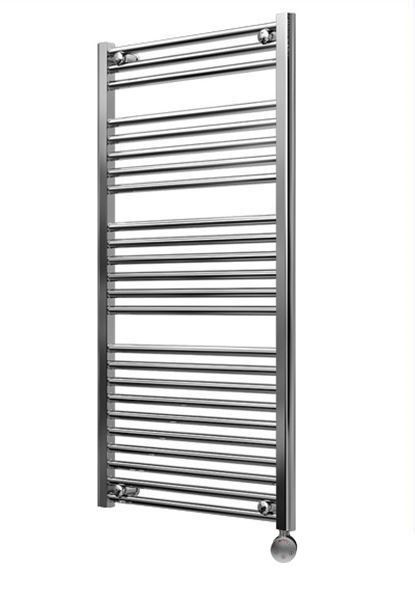

For those properties without central heating, here we have a pre-filled electric towel rail which comes complete with a 600 watt thermostatic type electric heating element, blanking plugs and it is pre-filled with deionised water based solution containing a mix of central heating preservatives and inhibitors. No other parts required to install and run this towel rail as electric only. Simply remove one of the blanking plugs from the bottom of the towel radiator (Opposite side of the bleed valve. - if the bleed valve is on top-right, remove blanking plug from bottom-left), insert and secure the electric heating element supplied to this inlet point and affix the radiator using the brackets supplied on to your wall, connect thermostatic heating element to your fused spur power outlet.
Thermostatic electric heating element supplied has a range from 0 to 65 Celsius degree and a red led light to indicate ON/OFF state. As you turn the heat control knob to required level, the red led light will come ON to indicate that the element is heating the water based solution inside. After the initial heat up, element starts to regulate itself keeping the water temperature at same level during which the red led light will come ON and OFF regularly.
Width: 500mm
Height: 1150mm
Total Projection: 90-110mm
Radiator Heat Output: 400 Watt - 1365 BTU/h @ Delta 50
Element Type & Power: 600 Watt Thermostatic Electric Heating Element (Chrome Plated)
Water Intake: 5.28 litres
Pressure: 8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Electric only
Orientation: Vertical
Horizontal Tubes: 24 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 10 + 6 + 5 + 3
Number of Gaps: 3
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years on towel rail & 2 years on electric element which is replaceable and changeable.
This is an electrical item and should be installed by a qualified electrician. Use with caution as the towel rail surface may get hot for delicate skin.
