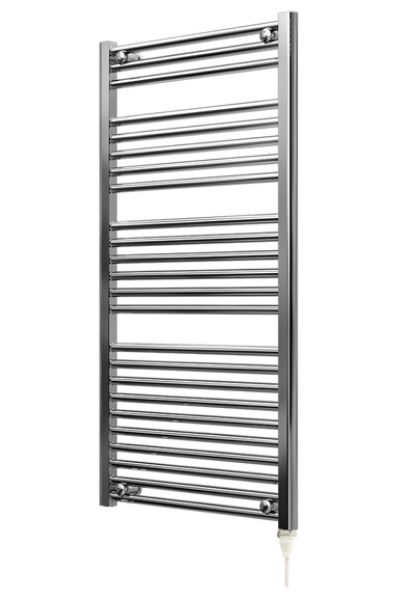

500mm Wide 1150mm High Chrome Flat Pre-filled Electric Towel Rail - Standard

500mm wide and 1150mm high pre-filled chrome flat standard heated towel rail with 402 Watt - 1372 BTU/h heat output @ Delta 50. Comes complete with 400 Watt standard type electric heating element.
£179.99 inc. VAT
Brand: ADIGE
Product Code: ELS-PF5011C
EAN: 0634041767303
3 in stock
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

For those properties without central heating, here we have a pre-filled electric towel rail which comes complete with a 400 watt standard type electric heating element, blanking plugs and it is pre-filled with deionised water based solution containing a mix of central heating preservatives and inhibitors. No other parts required to install and run this towel rail as electric only. Simply remove one of the blanking plugs from the bottom of the towel radiator (Opposite side of the bleed valve. - if the bleed valve is on top-right, remove blanking plug from bottom-left), insert and secure the electric heating element supplied to this inlet point and affix the radiator using the brackets supplied on to your wall, connect heating element to your fused spur power outlet.

Width: 500mm
Height: 1150mm
Total Projection: 90-110mm

Radiator Heat Output: 402 Watt - 1372 BTU/h @ Delta 50
Element Type & Power: 400 Watt Standard Electric Heating Element
Water Intake:5.28 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Electric only

Orientation: Vertical
Horizontal Tubes: 24 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 10 + 6 + 5 + 3
Number of Gaps: 3

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years on towel rail & 1 year on electric element which is replaceable and changeable.

This is an electrical item and should be installed by a qualified electrician. Use with caution as the towel rail surface may get hot for delicate skin.

Towel rail technical drawing 500/1150mm flat models

*
*
*
*

For those properties without central heating, here we have a pre-filled electric towel rail which comes complete with a 400 watt standard type electric heating element, blanking plugs and it is pre-filled with deionised water based solution containing a mix of central heating preservatives and inhibitors. No other parts required to install and run this towel rail as electric only. Simply remove one of the blanking plugs from the bottom of the towel radiator (Opposite side of the bleed valve. - if the bleed valve is on top-right, remove blanking plug from bottom-left), insert and secure the electric heating element supplied to this inlet point and affix the radiator using the brackets supplied on to your wall, connect heating element to your fused spur power outlet.

Width: 500mm
Height: 1150mm
Total Projection: 90-110mm

Radiator Heat Output: 402 Watt - 1372 BTU/h @ Delta 50
Element Type & Power: 400 Watt Standard Electric Heating Element
Water Intake:5.28 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Electric only

Orientation: Vertical
Horizontal Tubes: 24 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 10 + 6 + 5 + 3
Number of Gaps: 3

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years on towel rail & 1 year on electric element which is replaceable and changeable.

This is an electrical item and should be installed by a qualified electrician. Use with caution as the towel rail surface may get hot for delicate skin.
