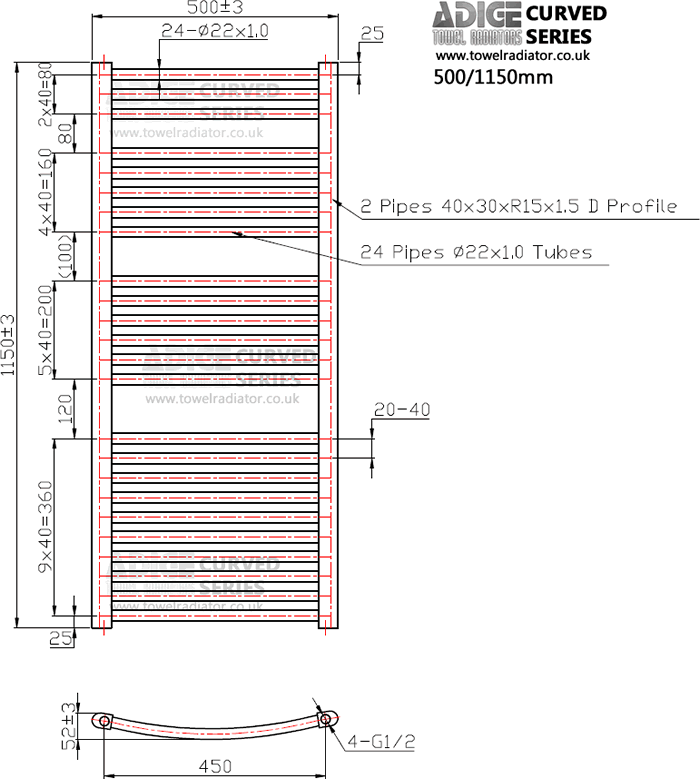

500mm Wide 1150mm High Chrome Curved Towel Radiator

Width: 500mm
Height: 1150mm
Pipe Centres: 450mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm + Curve (112-132mm)

Heat Output: 403 Watt - 1374 BTU/h @ Delta 50
Water Intake: 5.31 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Curved
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)

Orientation: Vertical
Horizontal Tubes: 24 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 10 + 6 + 5 + 3
Number of Gaps: 3

Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
