Width: 300mm
Height: 800mm
Pipe Centres: 250mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm
Heat Output: 174 Watt - 593 BTU/h @ Delta 50
Water Intake: 2.53 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Central heating / Electric only / Dual fuel
(Please note additional parts will be required for each usage type)
Orientation: Vertical

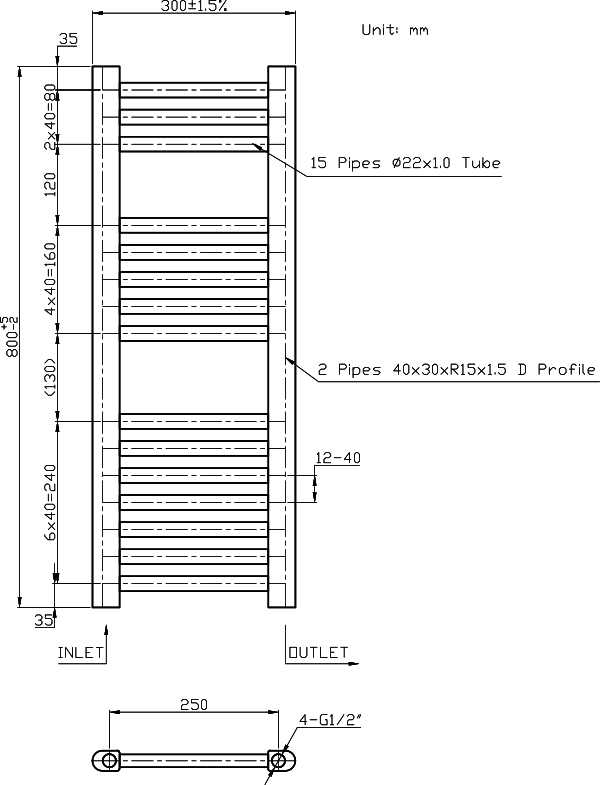

Horizontal Tubes: 15 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 7 + 5 + 3
Number of Gaps: 2
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
