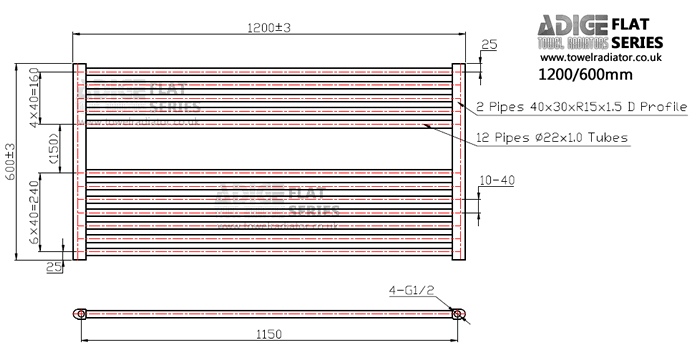

Width: 1200mm
Height: 600mm
Pipe Centres: 1150mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm
Heat Output: 439 Watt - 1497 BTU/h @ Delta 50
Water Intake: 5.33 litres
Pressure:8 Bar (Safety Tested)
Finish: Chrome Plated
Material: Steel
Design: Flat
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)
Orientation: Horizontal
Horizontal Tubes: 12 (Round 22mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 7 + 5
Number of Gaps: 1
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
