Option 1 - I want to use this towel rail as Dual Fuel - What Parts do I need?

1.A - Dual Fuel Pipe work coming out from the WALL

When your pipe work is coming out from the wall, there are 3 possible ways to achieve a dual fuel towel rail connection. 1st option below is the best solution in terms of ease of installation and the overall look once the connection is final. This is achieved by using a set of radiator valves specifically designed for dual fuel towel rails. These valves have T pipes built-in allowing elements to be inserted directly below, while the pipe work outlet is facing to back wall.

Usually on dual fuel towel rails, pipe work need to be arranged wider than the towel rail. However with these special valves, pipe work can be in line with the towel rail as if it is a straight forward central heating connection only.

1.A.1 - Dual Fuel Pipes from Wall # Corner Valves option (recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A set of dual fuel corner valves (DFCC)
Matching heating element

With this option you will not require any T pipes and whole connection will be a lot more symmetrical as pipe work and valves are aligned perfectly with towel rail's vertical tubes.

1.A.2 - Dual Fuel Pipes from Wall # Two T-Pipes option

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
Matching heating element
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.A.3 - Dual Fuel Pipes from Wall # One T-Pipe option (not recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves
Matching heating element
One T pipe (Dual Fuel adaptor)

1.B - Dual Fuel Pipe work coming out of the FLOOR

1.B.1 - Dual Fuel Pipes from Floor # Two T-Pipes option (recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of angled valves
Matching heating element
Two T pipes (Dual Fuel adaptor)
One blanking plug

1.B.2 - Dual Fuel Pipes from Floor # One T-Pipe option (not recommended)

Type of Use: Dual Fuel (Central Heating and Electric)
Pipe Work: Pipes coming out from the floor
Parts Required:

One straight and one angled valve
Matching heating element
One T-pipe (Dual Fuel adaptor)

Option 2 - I want to use this towel rail as part of Central Heating - What Parts do I need?

2.A - Central Heating Connection - Pipes from WALL

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out of the wall
Parts Required:

A pair of angled valves or a pair of corner valves (recommended)

While angled valve handles will protrude, corner valves will be in-line with your towel rail.

2.B - Central Heating Connection - Pipes from FLOOR

Type of Use: Central Heating connection only
Pipe Work: Pipes coming out from the floor
Parts Required:

A pair of straight (in-line) valves

Option 3 - I want to use this towel rail as Electric Only - What Parts do I need?

Type of Use: Electric Only
Parts Required:

Matching heating (electric) element
Blanking plug

Please note that product codes beginning with EL, ELS and ELT are either dry type electric towel rails or pre-filled towel radiators supplied with a matching heating element and a blanking plug.

For those products (product codes begin with EL, ELS, ELT) you do not need to purchase any additional parts.

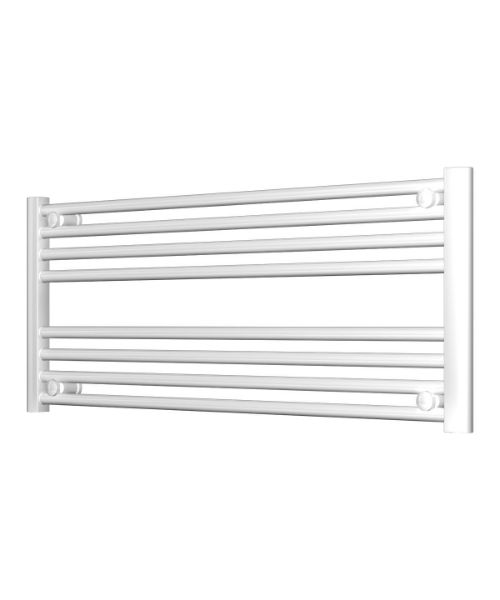

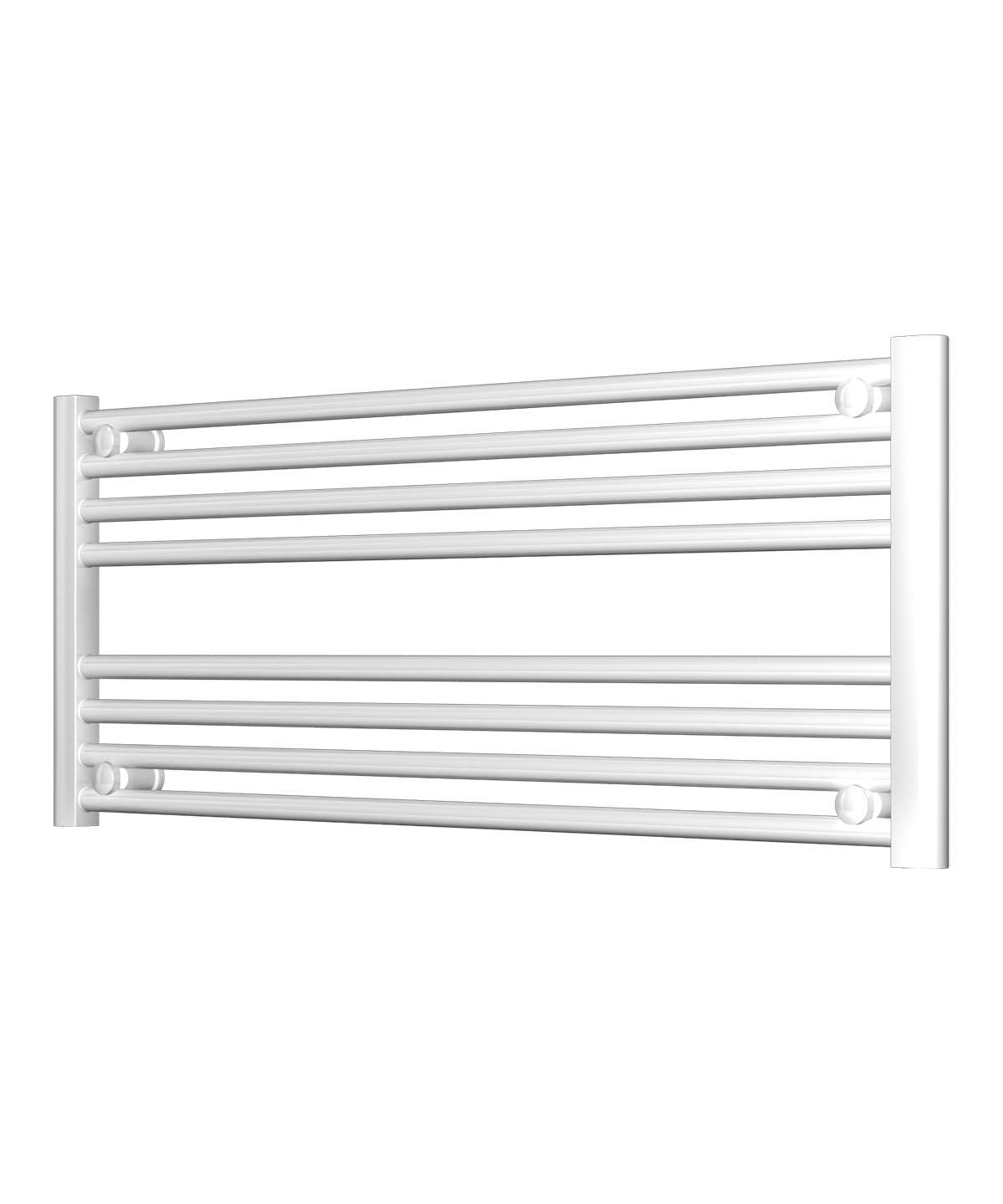

White Heated Towel Rail - Horizontal 1000mm Wide | 400mm High
