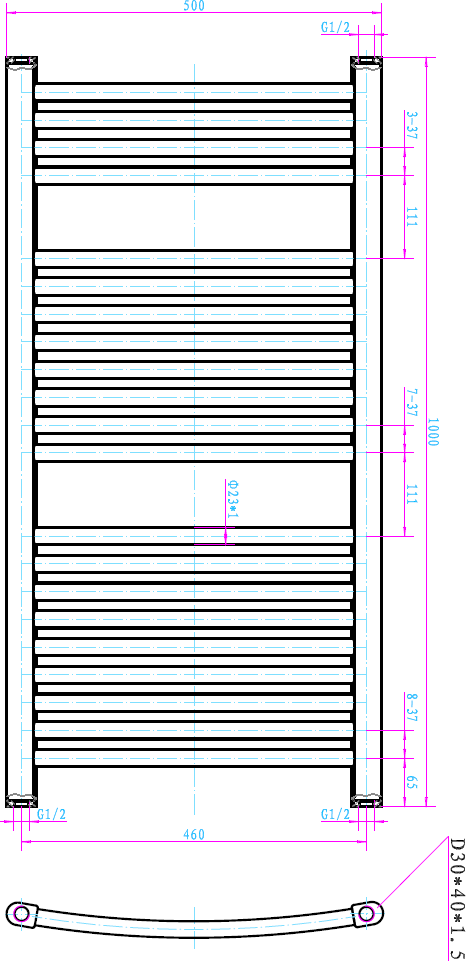

Width: 500mm
Height: 1000mm
Pipe Centres: 460mm
Wall to Pipe Centres: 75-95mm
Total Projection: 90-110mm (+ Curve)
Heat Output: 357 Watt - 1219 BTU/h @ Delta 50
Finish: Chrome Plated
Material: Steel
Design: Curved
Usage: Central heating / Electric only / Dual fuel (Please note additional parts will be required for each usage type)
Orientation: Vertical
Horizontal Tubes: 14 (Round 23mm Diameter)
Vertical Tubes: 2 (D Profile 40mm x 30mm)
Tube Layout: 4 + 8 + 9
Number of Gaps: 2
Mountings: 4 x adjustable brackets, plugs, screws and airvent
Guarantee: 5 Years
